5.5mm x 2.1mm Male Female DC Socket Jack Plug Connector Cable Pigtail for LED Strips, Solar Panels 1-100pcs

Specifications of 5.5mm x 2.1mm Male Female DC Socket Jack Plug Connector Cable Pigtail

Cable length: 15cm

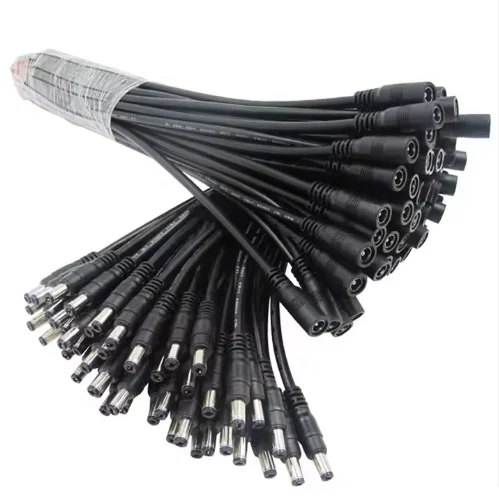

Package quantity: 1pcs/ 3pcs/ 5pcs/ 10pcs/ 30pcs/ 50pcs/100pcs

Wire gauge: 22AWG

Connectors: Male/female DC connector

Cable color and Insulating layer:

Type A: Single-layer insulated red & black wires

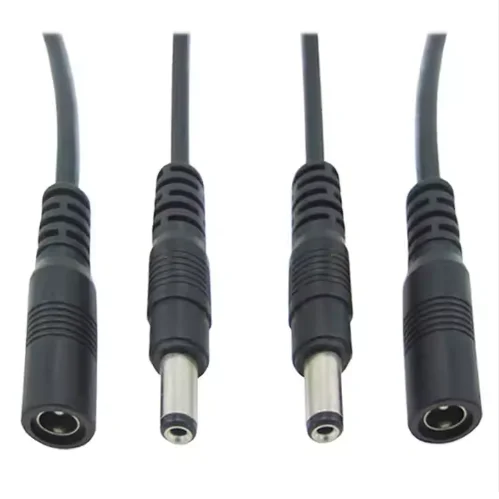

Type B: Double-layer insulated all-black wire

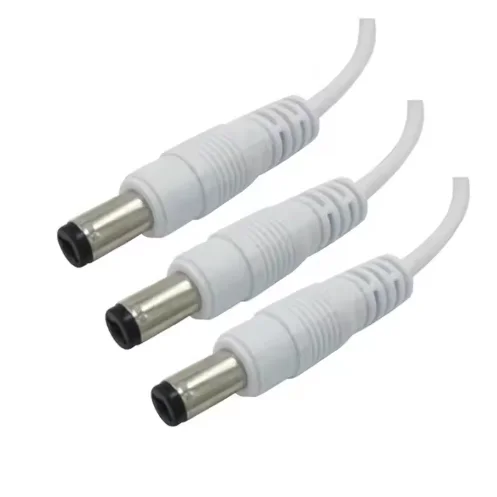

Type C: Double-layer insulated all-white wire

Outside diameter: 5.5mm

Inside diameter: 2.1mm

Conductor Material: Copper

Insulation Material: PVC

Rated Voltage/Current: 300V, 3A

Voltage: 24V(Compatible 5V/12v)

Operating Temperature: 0℃ to 80℃

Customization Options for specific needs: Length, color, DC plug type, Package quantity, and wire gauges

Type A pigtail cables the single-Layer Insulated wires are best for indoor use in that the polarity marking helps prevent reverse connections. While Type B and Type C DC cables, the  Double-Layer insulated black and white cables are more durable to be used for outdoor environments.

Applications of 5.5mm x 2.1mm Male Female DC power connector pigtail cable

This DC power connector pigtail cable is a flexible power link for LED strips, solar panels, CCTV cameras, Arduino projects, and other 12V/24V low-voltage devices. The pigtail open wire end also supports other custom and DIY projects like quick crimping.

Where to Purchase Male Female DC Power Pigtail Cable

At Vocson, we provides high-quality 5.5×2.1mm DC power cables with thoughtful custom services. Vocson is an exceptional wire and cable supplier with years cable manufacturing experience and a professional team. If you are looking for DC connector cables, DC pigtail cables, DC power extension cable, or other types of DC power cables, welcome to contact us!
